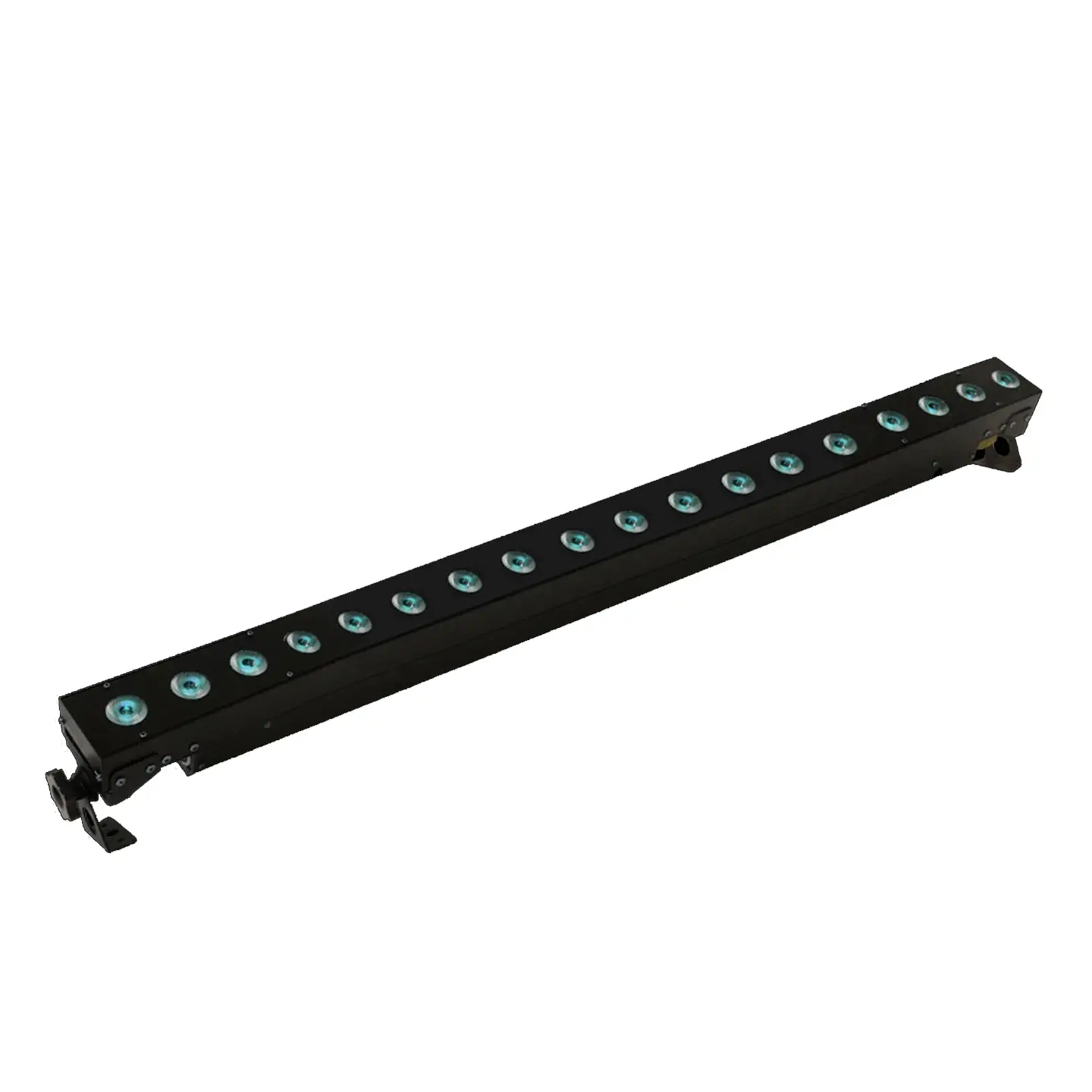

Miltec LED Batten 2 1812

The Miltec LED Batten 2 1812 is a versatile linear LED fixture designed for strong colour washes, pixel effects, and set lighting. With 18 individually controllable RGBW cells, it delivers smooth colour mixing and dynamic chases, making it a reliable and widely used fixture for both creative and functional lighting setups.


Key Features & Specs

  • 18x 12W RGBW LEDs (quad colour)
  • 30° beam angle with approx. 15m projection
  • 18 individual LED zones for pixel mapping
  • DMX modes: 4, 5, 7, 72 channels
  • Master/Slave, standalone, and DMX control
  • PowerCON in/out + 5-pin XLR DMX
  • Power consumption approx. 250W
  • Compact 1m linear fixture (~3.7kg)
  • IP20 rated (indoor use)

Ideal For

Concerts, festivals, corporate events, and stage productions where linear colour washes, set uplighting, or pixel-mapped effects are required. Ideal for backdrops, stage edges, truss lines, and “eye candy” looks in dynamic lighting designs.
