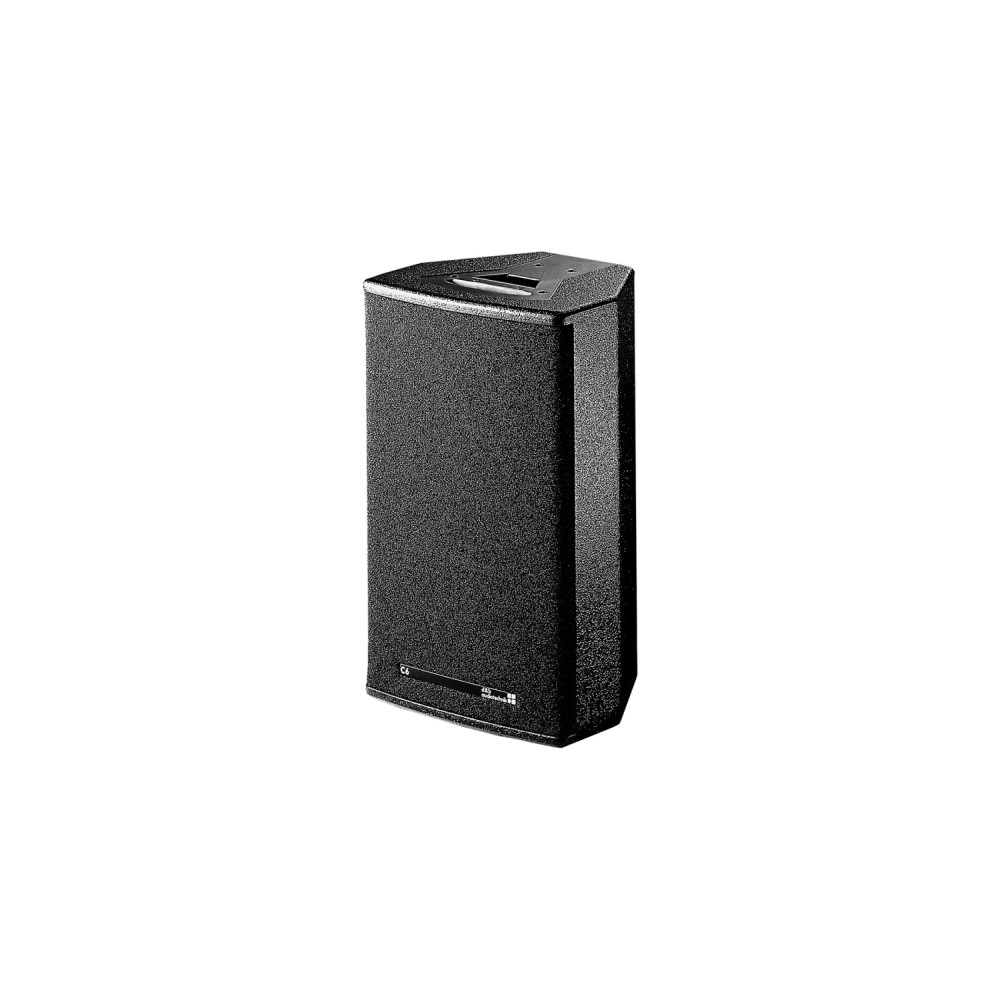

d&b Audiotechnik C690 Loudspeaker

The d&b audiotechnik C690 is a high-performance 2-way passive loudspeaker featuring a 12” low-frequency driver and 2” high-frequency compression driver. It is engineered for clear, high-efficiency sound reproduction with wider horizontal coverage than the standard C6, making it ideal for applications requiring broader audience coverage from a compact point source cabinet.

Its constant directivity horn design ensures consistent tonal balance across the coverage area, while its enclosure allows multiple units to be arrayed for scalable system designs in both portable and installed applications.

Key Features & Specs

• 2-way full-range passive loudspeaker
• 12” LF driver + 2” HF compression driver
• Frequency response: approx. 70 Hz – 17 kHz
• Max SPL: up to 134 dB @ 1m
• Nominal dispersion: 90° x 50° constant directivity horn
• Power handling: 200W RMS / 800W peak
• Designed for use with d&b amplifier systems (D6 / D12 / compatible platforms)
• Marine plywood touring-grade enclosure with impact-resistant finish
• Integrated rigging points for flown or bracket mounting
• Optimised for wider horizontal coverage applications
• Suitable for standalone use or multi-cabinet arrays

Ideal For

Concerts, theatre productions, corporate events, festivals, houses of worship, and installed PA systems requiring wider coverage full-range loudspeakers with consistent clarity and high output.
